PY Series Cone Crusher portable crushing plant crushing technology vibrating feeder jaw crusher

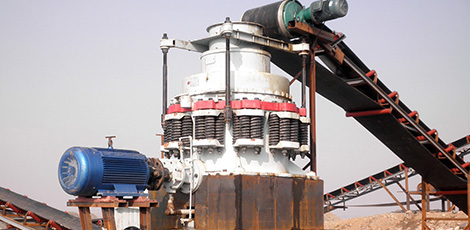

PY Series Cone Crusher

PY series spring cone crusher is the first cone crusher, which is based on absorbing the internationally advanced technique; It has been used in the secondary and tertiary crushing. The spring insurance system is the overload protection device; The sealed form is dry oil or water; According to the crushed ore use, it is divided into three types: the standard type; the medium type and the short head type. ;

please feel free contact us by whatsapp: 008615021099979
(wechat/Viber/line/IMO/facebook)

(100-150TPH) Hard Rock Mobile Crushing Mobile Jaw Crusher Portable Crushing Plant

This mobile crushing station consists of vibrating feeder and jaw crusher. It plays a role of primary crushing stage, which can crush the hard stone with size around 700mm into small aggregates size range from 80mm-140mm. Its capacity is around 110-320t/h.

(500TPH-600TPH) Medium Hard Rock

The stone production line (500tph-600tph) mainly consists of vibrating feeder, jaw crusher, 2 sets impact crushers, 2sets vibrating screens, etc. In order to meet the large-output requirement, this configuration is energy-saving and high-efficiency. It can crush medium hard rock into stone at the rate of 500TPH to 600TPH.

Specifications

No.	Equipment	Model	Quantity	Power(Kw)
1	Vibrating Feeder	GZD1100X4200	1	15-18.5
2	Jaw Crusher	PE750X1060	1	90-110
3	Chassis	Tri-axial	1

(100-150TPH) Hard Rock Mobile Crushing Screening &Washing Plant Sand Making Plant

please feel free contact us by whatsapp: 008615021099979
(wechat/Viber/line/IMO/facebook)

Feature
1.Manufacturing technique is of world class
2.The movable jaw assembly is of more advanced technology. It adopts high quality welding technology, and the eccentric shaft is elaborate
3.Integral cast steel structure is adopted for bearing seat to ensure the complete match with the frame
4.Finite Element Analysis is adopted to strengthen the crusher
5.The crushing chamber adopts "V" shape structure, which makes the feeding port's actual width be in accordance with the nominal
6.Discharging port adjustment is quicker and more convenient. Wedge block adjustment device is easier, safer and faster
7.Larger and more wearable main bearing is used to lengthen the service life; The bearing capacity is higher and effective labyrinth seal also lengthens the lifespan
8.The teeth protection plate increases the length of jaw plate

Specifications

Model	The diameter of crushing head bottom(mm)	Max. Feeding size(mm)	Adjusting range (mm)	Capacity (t/h)	Power (KW)	Speed of Eccentric Shaft (r/min)	Weight (t)	Overall dimension (mm)
PYB600	600	75	12-25	40	30	356	5	2234×1370×1675
PYZ600	600	35	3-13	5-23	30	356	5.3	2234×1370×1675
PYB900	900	115	15-50	50-90	55	333	11.2	2692×1640×2350
PYZ900	900	60	5-20	20-65	55	333	11.2	2692×1640×2350
PYD900	900	50	3-13	15-50	55	333	11.3	2692×1640×2350
PYB1200	1200	145	20-50	110-168	110	300	24.7	2790×1878×2844
PYZ1200	1200	100	8-25	42-135	110	300	25	2790×1878×2844
PYD1200	1200	50	3-15	18-105	110	300	25.3	2790×1878×2844
PYB1750	1750	215	25-50	280-480	160	245	50.3	3910×2894×3809
PYZ1750	1750	185	10-30	115-320	160	245	50.3	3910×2894×3809
PYD1750	1750	85	5-13	75-230	160	245	50.2	3910×2894×3809
PYB2200	2200	300	30-60	490-750	260-280	220	80	4622×3302×4470
PYZ2200	2200	230	10-30	200-580	260-280	220	80	4622×3302×4470
PYD2200	2200	100	5-15	120-340	260-280	220	81.4	4622×3302×4470
