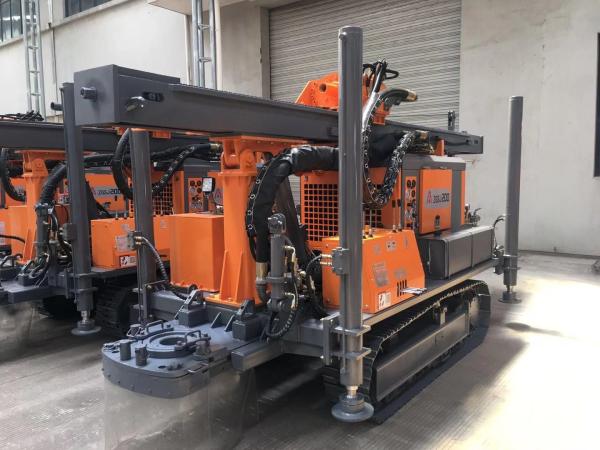

    250m 300m FY300A/ FY300 STEEL TRACK CRAWLER WATER WELL DRILLING machine portable truck mounted water well drilling rig

    Ask Lasest Price
    Brand Name : SANROCK
    Model Number : 985
    Certification : ISO9001,ISO,ENERGY SAVING,CE
    Price : USD1
    Payment Terms : D/P, L/C, T/T, Western Union, MoneyGram
    Supply Ability : 300 units per month
    Delivery Time : 7-15 working days
    • Product Details
    • Company Profile

    250m 300m FY300A/ FY300 STEEL TRACK CRAWLER WATER WELL DRILLING machine portable truck mounted water well drilling rig

    250m 300m FY300A/ FY300 STEEL TRACK CRAWLER WATER WELL DRILLING machine portable truck mounted water well drilling rig
    300m FY300A/ FY300 STEEL TRACK CRAWLER WATER WELL DRILLING machine portable water well drilling rigs
    DESCRIPTION

    400M depth Water Well Drilling Rig

    Product Features


    This model rig uses full hydraulic control, and the Top drive to drive the rotation of drilling tools with very high drilling efficiency.


    Reasonable overall layout uses the tractor-mounted or full ground chassis for transportation with good maneuverability.


    ● Very flexible in difficult roads and can be widely used in many fields such as resource exploration of hydrology wells, coalbed methane, the shallow

    layer of shale gas, terrestrial heat, etc, and can also be used for coal-mine gas exploitation salvage work.


    ● The top-mounted driving head principal shaft has a great drift diameter, suitable for many kinds of construction work such as slurry drilling, air
    drilling, and air foam drilling, meeting the demands for well-drilling at different terrain strata.

    SPECIFICATION
    SPECIFICATIONS
    FY300A CRAWLER WATER WELL DRILLING RIG
    Drilling Depth300m
    Drilling Diameter140-325mm
    One-Time Advance Length3.40m
    Walking Speed2.50km/h
    Climbing Angles30 degree
    Engine Power76KW
    Work Air Pressure1.7-3.0 Mpa
    Air Consumption17-35m3/min
    Drill Pipe Length2m, 3m
    Drill Pipe Diameter76mm, 89mm, 102mm
    Rig Lifting Force16 ton
    Rotary Speed40-70 rpm
    Rotary Torque5700-7500 N.m
    Weight7000KG
    Dimensions4100*1950*2600mm
    FY300 CRAWLER WATER WELL DRILLING RIG
    Drilling Depth300m
    Drilling Diameter140-325mm
    One-Time Advance Length6.60m
    Walking Speed2.50km/h
    Climbing Angles30 degree
    Engine Power84KW
    Work Air Pressure1.7-3.3 Mpa
    Air Consumption17-35m3/min
    Drill Pipe Length2m, 3m, 6m
    Drill Pipe Diameter89mm, 102mm
    Rig Lifting Force20 ton
    Rotary Speed55-115 rpm
    Rotary Torque6200-8500 N.m
    Weight9000KG
    Dimensions5900*2000*2850mm
    ==============================================
    please feel free contact us, whatsapp/wechat::008615021099979
    ====================================================
    FY600/F800 CRAWLER WATER WELL DRILLING RIG
    FY600/F800 Crawler Water Well Drilling Rig
    DESCRIPTION

    600M 800M depth Water Well Drilling Rig
    250m 300m FY300A/ FY300 STEEL TRACK CRAWLER WATER WELL DRILLING machine portable truck mounted water well drilling rig250m 300m FY300A/ FY300 STEEL TRACK CRAWLER WATER WELL DRILLING machine portable truck mounted water well drilling rig
    Product Features


    ● This model rig uses full hydraulic control, and the Top drive to drive the rotation of drilling tools with very high drilling efficiency.


    ● Reasonable overall layout uses the tractor-mounted or full ground chassis for transportation with good maneuverability.

    ● Very flexible in difficult roads and can be widely used in many fields such as resource exploration of hydrology wells, coalbed methane, the shallow
    layer of shale gas, terrestrial heat, etc, and can also be used for coal-mine gas exploitation salvage work.
    ● The top-mounted driving head principal shaft has a great drift diameter, suitable for many kinds of construction work such as slurry drilling, air
    drilling, and air foam drilling, meeting the demands for well-drilling at different terrain strata.

    SPECIFICATION
    FY600 CRAWLER WATER WELL DRILLING RIG
    Drilling Depth600m
    Drilling Diameter140-350mm
    One-Time Advance Length6.60m
    Walking Speed2.50km/h
    Climbing Angles30 degree
    Engine Power118KW
    Work Air Pressure1.7-3.5 Mpa
    Air Consumption17-42m3/min
    Drill Pipe Length2m, 3m, 6m
    Drill Pipe Diameter102mm, 108mm, 114mm
    Rig Lifting Force28 ton
    Rotary Speed45-115 rpm
    Rotary Torque8500-11000 N.m
    Weight12000KG
    Dimensions6000*2200*2850mm

    FY800 CRAWLER WATER WELL DRILLING RIG
    Drilling Depth700m
    Drilling Diameter140-400mm
    One-Time Advance Length6.60m
    Walking Speed2.50km/h
    Climbing Angles30 degree
    Engine Power140KW
    Work Air Pressure1.7-3.5 Mpa
    Air Consumption17-42m3/min
    Drill Pipe Length2m, 3m, 6m
    Drill Pipe Diameter102mm, 108mm, 114mm
    Rig Lifting Force30 ton
    Rotary Speed55-120 rpm
    Rotary Torque8850-13150 N.m
    Weight13000KG
    Dimensions6100*2200*2900mm



    ==================================================================================
    please feel free contact us, whatsapp/wechat::008615021099979

    =====================================================

    FY600 CRAWLER WATER WELL DRILLING RIG
    Drilling Depth600m
    Drilling Diameter140-350mm
    One-Time Advance Length6.60m
    Walking Speed2.50km/h
    Climbing Angles30 degree
    Engine Power118KW
    Work Air Pressure1.7-3.5 Mpa
    Air Consumption17-42m3/min
    Drill Pipe Length2m, 3m, 6m
    Drill Pipe Diameter102mm, 108mm, 114mm
    Rig Lifting Force28 ton
    Rotary Speed45-115 rpm
    Rotary Torque8500-11000 N.m
    Weight12000KG
    Dimensions6000*2200*2850mm

    FY800 CRAWLER WATER WELL DRILLING RIG
    Drilling Depth700m
    Drilling Diameter140-400mm
    One-Time Advance Length6.60m
    Walking Speed2.50km/h
    Climbing Angles30 degree
    Engine Power140KW
    Work Air Pressure1.7-3.5 Mpa
    Air Consumption17-42m3/min
    Drill Pipe Length2m, 3m, 6m
    Drill Pipe Diameter102mm, 108mm, 114mm
    Rig Lifting Force30 ton
    Rotary Speed55-120 rpm
    Rotary Torque8850-13150 N.m
    Weight13000KG
    Dimensions6100*2200*2900mm
