    DESCRIPTION
    SRSJ-200 water well drilling rig with light and flexible features for wide market.

    Product Features
    ● Small profile for easy access to narrow job sites.

    ● Simple but reliable design with adequate rotary torque and lifting force.

    ● Hoist and winch able to lift drill tools and accessories up to 1,500kgs, reducing workload of operators.

    ● Rotation with two speed adjustable for different hole ranges and rock conditions.


    Product detail show case


    Convenient and flexible positioning mechanism and plate turnover structure, simple and high efficiency.



    Centralized operation and control system, easy, convenient and high efficiency.

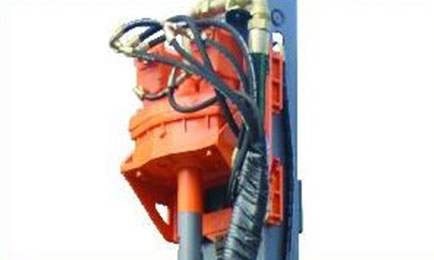

    High torque rotation unit with high and low speed switchable and torque up to 5,600 N.m, widely used in large hole DTH drilling and casing.
    SPECIFICATION
    SRSJ-200 TECHNICAL SPECIFICATION
    transportation size5400*1900*2500mm
    machine weight5.7t
    engineyuchai YCD4R22T-80(59kw)
    climbing ability25°
    ground clearance280mm
    tramming speed2.4km/h
    rod/pipe typeφ76mm*3m / 89mm*3m
    hole depth180m
    drill pipe diameterφ110-200mm
    rotation torquehigh: 2,800N.m / slow:5,600N.m
    rotation speedhigh:0-80 r/min / slow:0-40 r/min
    feed typeoil clinder + chain
    feed force24KN
    pull up force70KN
    winch pull up force1.5t(standard configuration)
    the travel of support jack oil cylinder1400mm
    angle meterstandard configuration
    reverse shaft pressure devicestandard configuration
    ==============================================
    please feel free contact us, whatsapp/wechat::008615021099979
    ====================================================
    FY600/F800 CRAWLER WATER WELL DRILLING RIG
    FY600/F800 Crawler Water Well Drilling Rig
    DESCRIPTION

    600M 800M depth Water Well Drilling Rig
    SRSJ-200 180m 200m WATER WELL DRILLING RIGG water well drill rig shallow water well drilling equipment borehole drillSRSJ-200 180m 200m WATER WELL DRILLING RIGG water well drill rig shallow water well drilling equipment borehole drill
    Product Features

    ● This model rig uses full hydraulic control, and the Top drive to drive the rotation of drilling tools with very high drilling efficiency.


    ● Reasonable overall layout uses the tractor-mounted or full ground chassis for transportation with good maneuverability.

    ● Very flexible in difficult roads and can be widely used in many fields such as resource exploration of hydrology wells, coalbed methane, the shallow
    layer of shale gas, terrestrial heat, etc, and can also be used for coal-mine gas exploitation salvage work.
    ● The top-mounted driving head principal shaft has a great drift diameter, suitable for many kinds of construction work such as slurry drilling, air
    drilling, and air foam drilling, meeting the demands for well-drilling at different terrain strata.

    SPECIFICATION
    FY600 CRAWLER WATER WELL DRILLING RIG
    Drilling Depth600m
    Drilling Diameter140-350mm
    One-Time Advance Length6.60m
    Walking Speed2.50km/h
    Climbing Angles30 degree
    Engine Power118KW
    Work Air Pressure1.7-3.5 Mpa
    Air Consumption17-42m3/min
    Drill Pipe Length2m, 3m, 6m
    Drill Pipe Diameter102mm, 108mm, 114mm
    Rig Lifting Force28 ton
    Rotary Speed45-115 rpm
    Rotary Torque8500-11000 N.m
    Weight12000KG
    Dimensions6000*2200*2850mm

    FY800 CRAWLER WATER WELL DRILLING RIG
    Drilling Depth700m
    Drilling Diameter140-400mm
    One-Time Advance Length6.60m
    Walking Speed2.50km/h
    Climbing Angles30 degree
    Engine Power140KW
    Work Air Pressure1.7-3.5 Mpa
    Air Consumption17-42m3/min
    Drill Pipe Length2m, 3m, 6m
    Drill Pipe Diameter102mm, 108mm, 114mm
    Rig Lifting Force30 ton
    Rotary Speed55-120 rpm
    Rotary Torque8850-13150 N.m
    Weight13000KG
    Dimensions6100*2200*2900mm



    ==================================================================================
    please feel free contact us, whatsapp/wechat::008615021099979

    =====================================================

    FY600 CRAWLER WATER WELL DRILLING RIG
    Drilling Depth600m
    Drilling Diameter140-350mm
    One-Time Advance Length6.60m
    Walking Speed2.50km/h
    Climbing Angles30 degree
    Engine Power118KW
    Work Air Pressure1.7-3.5 Mpa
    Air Consumption17-42m3/min
    Drill Pipe Length2m, 3m, 6m
    Drill Pipe Diameter102mm, 108mm, 114mm
    Rig Lifting Force28 ton
    Rotary Speed45-115 rpm
    Rotary Torque8500-11000 N.m
    Weight12000KG
    Dimensions6000*2200*2850mm

    FY800 CRAWLER WATER WELL DRILLING RIG
    Drilling Depth700m
    Drilling Diameter140-400mm
    One-Time Advance Length6.60m
    Walking Speed2.50km/h
    Climbing Angles30 degree
    Engine Power140KW
    Work Air Pressure1.7-3.5 Mpa
    Air Consumption17-42m3/min
    Drill Pipe Length2m, 3m, 6m
    Drill Pipe Diameter102mm, 108mm, 114mm
    Rig Lifting Force30 ton
    Rotary Speed55-120 rpm
    Rotary Torque8850-13150 N.m
    Weight13000KG
    Dimensions6100*2200*2900mm
