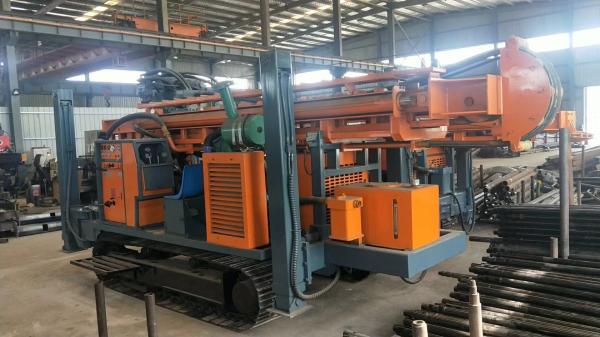

    ZGSJ-450 300m DTH WATER WELL DRILL RIG machine portable hydraulic water well drilling rigs deep drill rig truck

    Ask Lasest Price
    Brand Name : SANROCK
    Model Number : 985
    Certification : ISO9001,ISO,ENERGY SAVING,CE
    Price : USD1
    Payment Terms : D/P, L/C, T/T, Western Union, MoneyGram
    Supply Ability : 300 units per month
    Delivery Time : 7-15 working days
    • Product Details
    • Company Profile

    ZGSJ-450 300m DTH WATER WELL DRILL RIG machine portable hydraulic water well drilling rigs deep drill rig truck

    ZGSJ-450 300m DTH WATER WELL DRILL RIG machine portable hydraulic water well drilling rigs deep drill rig truck


    DESCRIPTION
    ZGSJ-450 track type multipurpose water well drill rig is a new designed, high efficient and multipurpose hydraulic drill rig, mainly for drilling water wells, inspection camber wells and geothermal wells, etc.

    Product Features
    ● Equipped with high configuration for widely used in various well drilling applications. Combined with best features from domestic and international
    products and key hydraulic components with global famous brands to ensure reliability, and it is a leading and top class medium sized well drill rig.

    ● Hoist and winch able to lift drill tools and accessories up to 1500kgs, reducing workload of operators.

    ● Tramming motor with higher torque for free and fast moving between different drilling conditions.

    ● Feeding and lifting with fast and low speed switchable for higher drilling efficiency, rotation with two speed adjustable for different hole ranges and
    rock conditions.
    ZGSJ-450 DTH WATER WELL DRILL RIG ZGSJ-450 DTH WATER WELL DRILL RIG ZGSJ-450 DTH WATER WELL DRILL RIGZGSJ-450 DTH WATER WELL DRILL RIG
    SPECIFICATION
    SRSJ-450 TECHNICAL SPECIFICATION
    transportation size6500*2000*2900mm
    machine weight8.5t
    engineyuchai YC4DK-125
    climbing ability25°
    ground clearance300mm
    tramming speed2.5km/h
    rod/pipe typeφ76mm*3m /89mm*3m/102mm*3m
    hole depth300m
    drill pipe diameterφ138-254mm
    rotation torque7500N.m
    rotation speed0-80 r/min
    feed typeoil clinder + chain
    feed force50KN
    pull up force130KN
    winch pull up force1.5t(standard)/8t(optional)
    the travel of support jack oil cylinder1600mm
    angle meterstandard configuration
    reverse shaft pressure devicestandard configuration
    ==============================================
    please feel free contact us, whatsapp/wechat::008615021099979
    ====================================================
    FY600/F800 CRAWLER WATER WELL DRILLING RIG
    FY600/F800 Crawler Water Well Drilling Rig
    DESCRIPTION

    600M 800M depth Water Well Drilling Rig
    ZGSJ-450 300m DTH WATER WELL DRILL RIG machine portable hydraulic water well drilling rigs deep drill rig truckZGSJ-450 300m DTH WATER WELL DRILL RIG machine portable hydraulic water well drilling rigs deep drill rig truck
    Product Features

    ● This model rig uses full hydraulic control, and the Top drive to drive the rotation of drilling tools with very high drilling efficiency.


    ● Reasonable overall layout uses the tractor-mounted or full ground chassis for transportation with good maneuverability.

    ● Very flexible in difficult roads and can be widely used in many fields such as resource exploration of hydrology wells, coalbed methane, the shallow
    layer of shale gas, terrestrial heat, etc, and can also be used for coal-mine gas exploitation salvage work.
    ● The top-mounted driving head principal shaft has a great drift diameter, suitable for many kinds of construction work such as slurry drilling, air
    drilling, and air foam drilling, meeting the demands for well-drilling at different terrain strata.

    SPECIFICATION
    FY600 CRAWLER WATER WELL DRILLING RIG
    Drilling Depth600m
    Drilling Diameter140-350mm
    One-Time Advance Length6.60m
    Walking Speed2.50km/h
    Climbing Angles30 degree
    Engine Power118KW
    Work Air Pressure1.7-3.5 Mpa
    Air Consumption17-42m3/min
    Drill Pipe Length2m, 3m, 6m
    Drill Pipe Diameter102mm, 108mm, 114mm
    Rig Lifting Force28 ton
    Rotary Speed45-115 rpm
    Rotary Torque8500-11000 N.m
    Weight12000KG
    Dimensions6000*2200*2850mm

    FY800 CRAWLER WATER WELL DRILLING RIG
    Drilling Depth700m
    Drilling Diameter140-400mm
    One-Time Advance Length6.60m
    Walking Speed2.50km/h
    Climbing Angles30 degree
    Engine Power140KW
    Work Air Pressure1.7-3.5 Mpa
    Air Consumption17-42m3/min
    Drill Pipe Length2m, 3m, 6m
    Drill Pipe Diameter102mm, 108mm, 114mm
    Rig Lifting Force30 ton
    Rotary Speed55-120 rpm
    Rotary Torque8850-13150 N.m
    Weight13000KG
    Dimensions6100*2200*2900mm



    ==================================================================================
    please feel free contact us, whatsapp/wechat::008615021099979

    =====================================================

    FY600 CRAWLER WATER WELL DRILLING RIG
    Drilling Depth600m
    Drilling Diameter140-350mm
    One-Time Advance Length6.60m
    Walking Speed2.50km/h
    Climbing Angles30 degree
    Engine Power118KW
    Work Air Pressure1.7-3.5 Mpa
    Air Consumption17-42m3/min
    Drill Pipe Length2m, 3m, 6m
    Drill Pipe Diameter102mm, 108mm, 114mm
    Rig Lifting Force28 ton
    Rotary Speed45-115 rpm
    Rotary Torque8500-11000 N.m
    Weight12000KG
    Dimensions6000*2200*2850mm

    FY800 CRAWLER WATER WELL DRILLING RIG
    Drilling Depth700m
    Drilling Diameter140-400mm
    One-Time Advance Length6.60m
    Walking Speed2.50km/h
    Climbing Angles30 degree
    Engine Power140KW
    Work Air Pressure1.7-3.5 Mpa
    Air Consumption17-42m3/min
    Drill Pipe Length2m, 3m, 6m
    Drill Pipe Diameter102mm, 108mm, 114mm
    Rig Lifting Force30 ton
    Rotary Speed55-120 rpm
    Rotary Torque8850-13150 N.m
    Weight13000KG
    Dimensions6100*2200*2900mm


    ZGSJ-450 300m DTH WATER WELL DRILL RIG machine portable hydraulic water well drilling rigs deep drill rig truckZGSJ-450 300m DTH WATER WELL DRILL RIG machine portable hydraulic water well drilling rigs deep drill rig truckZGSJ-450 300m DTH WATER WELL DRILL RIG machine portable hydraulic water well drilling rigs deep drill rig truckZGSJ-450 300m DTH WATER WELL DRILL RIG machine portable hydraulic water well drilling rigs deep drill rig truck
