Mobile Impact Crusher Plant, vertical shaft impact crusher small stone crusher crushing screening plant rock crushing

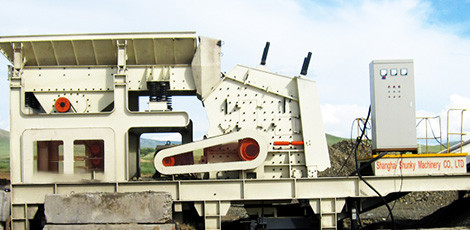

Mobile Impact Crusher Plant

Impact Crusher is the main machine of the Mobile Impact Crusher Plant,it’s ;used as secondary equipment after in the Jaw Crusher. ;Mobile Impact Crusher Plant is mainly used for metallurgy, chemical industry, building materials, water and electricity’s materials processing which often requires to relocate, especially for highways, railways, water and electricity projects mobility stone operation. Users can ask to adopt mufti-configuration modes according to types.

Feature
1.It’s professional used for construction waste recycling.　　
2.It is widely used in mining, coal, tailings, urban infrastructure, roads or construction sites and other sites.　　
3.It is used to deal with topsoil and a variety of other materials; Separation of viscosity of concrete aggregates; Construction and demolition industry; After crushing screening; Quarrying industry.　　
4.Pebble, rock (limestone, granite, basalt, diabase, andesite, etc.), ore tailings sand and stone chips of artificial system.

Specifications

Item	Unit	MG938F1010	MG938F1210	MG1142F1214	MG1142F1315
Transportation Length	mm	10800	11900	13100	13100
Transportation Width	mm	2480	2550	2800	2900
Transportation Height	mm	3900	3900	4450	4450
Maximum Length	mm	11200	12100	13300	13300
Maximum Width	mm	2900	2900	2950	2950
Maximum Height	mm	4100	4100	5200	5200
Weight	t	28	39	44	54
Tire Configuration		Dual-axial	Dual-axial	Tri-axial	Tri-axial
Crusher		PF-1010	PF-1210	PF-1214	PF-1315
Max Feeding Size	mm	300	300	300	350
Capacity	t/h	70-130	70-130	90-180	120-250
Vibrating Feeder		GZD-960×3800	GZD-960×3800	GZD-1100×4200	GZD-1100×4200
Main Belt Conveyor		B800×8M	B800×8.5M	B1000×9M	B1000×9M
Side-openingBelt Conveyor(Optional)		B450×3M	B450×3.2M	B500×3.5M	B500×3.5M
Power of Generator Set(Optional)	KW	200	200	250	330
Iron-separator(Optional)		RCMD(C)-8	RCMD(C)-8	RCMD(C)-10	RCMD(C)-10

(50TPH-80TPH) Sand Making Plant

This stone production line especially for crushing medium hard rock mainly consists of vibrating feeder, jaw crusher, impact crusher, vibrating screen, etc. The reasonable and practical design and the combination of different models aim to meet different customers’ different demands. This line’s actual production can reach 50 TPH- 80TPH.

Mobile Impact Crusher Plant, vertical shaft impact crusher small stone crusher crushing screening plant rock crushing

(500TPH-600TPH) Medium Hard Rock

The stone production line (500tph-600tph) mainly consists of vibrating feeder, jaw crusher, 2 sets impact crushers, 2sets vibrating screens, etc. In order to meet the large-output requirement, this configuration is energy-saving and high-efficiency. It can crush medium hard rock into stone at the rate of 500TPH to 600TPH.

(100-150TPH) Hard Rock Mobile Crushing Screening &Washing Plant Sand Making Plant

(200TPH-250TPH) Medium Hard Rock

This stone production line (200TPH-250TPH) is mainly made up of vibrating feeder, jaw crusher, impact crusher, vibrating screen, etc. This reasonable configuration is suitable for crushing medium hard rock into stones. The actual production is ranging from 200TPH-250TPH.

Working

please feel free contact us by whatsapp: 008615021099979
(wechat/Viber/line/IMO/facebook)

Working
The whole sand-making production line consists of vibrating feeder, jaw crusher, VSI vertical shaft impact crusher, vibrating screen, sand-washing machine, belt conveyor, electric control system, etc. We design different production lines ranging 50 t/h to 500 t/h. We have been researching the sand-making machine for years, and we have made it part of the production line. The whole set of sand-making line designed by our company is the leader in the artificial sand making field.

Feature
The raw material is transferred to jaw crusher for primary crushing by vibrating feeder, then the crushed material is transferred toVSI vertical shaft impact crusher through belt conveyor for secondary crushing( Impact crusher). The materials crushed will be transferred to the vibrating screen. The stones with suitable size will be discharged, and the other material with unsuitable size will be screened from vibrating screen, then will be transferred to the secondary crushing, be screened from vibrating screen, then will be transferred to the sand-making machine, transferred to sand washing machine, after being washed, then clean final products will be discharged. This forms 2 closed and manifold cycles. Sizes of final products will be according to our customers' requirements.

In this line, we offer the VSI vertical shaft impact crusher for making the artificial sand,the features of this line are fine shape final products,lower cost, large processing capacity and high capacity of ideal outputs,etc. We use the vertical shaft impact crusher after the secondary crushing by Cone crusher, in order to get the products with fine shape. The whole set of Sand& Stone Making line is suitable to crush the hard limestone, granite, basalt, gravel, slag, etc.

Mobile Impact Crusher Plant, vertical shaft impact crusher small stone crusher crushing screening plant rock crushing
