    HPS Series Cone Crusher portable crushing plant crushing technology vibrating feeder jaw crusher

    Ask Lasest Price
    Brand Name : SHQI
    Model Number : 985
    Certification : CE,ISO
    Price : USD**
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 100 units per month
    Delivery Time : 28 days
    • Product Details
    • Company Profile

    HPS Series Cone Crusher portable crushing plant crushing technology vibrating feeder jaw crusher

    HPS Series Cone Crusher portable crushing plant crushing technology vibrating feeder jaw crusher

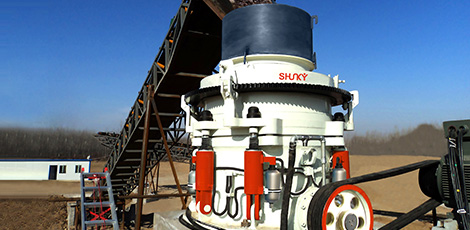

    HPS Series Cone Crusher

    HPS series cone crusher integrated crushing speed, stroke and crushing chamber ideally, not only improving the capacity and quality, but also expanding the range of applications, from limestone to iron ore, roadbed stone to manufactured sand and small mobile crushing station. HPS series cone crusher shows the excellent crushing capacity in secondary crushing and fine crushing from rock with high hardness to conventional rock .HPS series cone crusher is the latest generation hydraulic cone crusher based on Shanghai Shunky several years and several generations product experience on R&D, especially CS series cone crusher whose technology is reliable demonstrated by testing, integrating the advanced technology at home and aboard. HPS series cone crusher is smarter and more humanized in structure, operation and maintenance, etc.

    HPS Series Cone Crusher portable crushing plant crushing technology vibrating feeder jaw crusher

    please feel free contact us by whatsapp: 008615021099979
    (wechat/Viber/line/IMO/facebook)

    (100-150TPH) Hard Rock Mobile Crushing Mobile Jaw Crusher Portable Crushing Plant

    This mobile crushing station consists of vibrating feeder and jaw crusher. It plays a role of primary crushing stage, which can crush the hard stone with size around 700mm into small aggregates size range from 80mm-140mm. Its capacity is around 110-320t/h.

    (500TPH-600TPH) Medium Hard Rock

    The stone production line (500tph-600tph) mainly consists of vibrating feeder, jaw crusher, 2 sets impact crushers, 2sets vibrating screens, etc. In order to meet the large-output requirement, this configuration is energy-saving and high-efficiency. It can crush medium hard rock into stone at the rate of 500TPH to 600TPH.

    HPS Series Cone Crusher portable crushing plant crushing technology vibrating feeder jaw crusher

    Specifications


    No.EquipmentModelQuantityPower(Kw)
    1Vibrating FeederGZD1100X4200115-18.5
    2Jaw CrusherPE750X1060190-110
    3ChassisTri-axial1


    (100-150TPH) Hard Rock Mobile Crushing Screening &Washing Plant Sand Making Plant

    please feel free contact us by whatsapp: 008615021099979
    (wechat/Viber/line/IMO/facebook)

    Feature
    1.Manufacturing technique is of world class
    2.The movable jaw assembly is of more advanced technology. It adopts high quality welding technology, and the eccentric shaft is elaborate
    3.Integral cast steel structure is adopted for bearing seat to ensure the complete match with the frame
    4.Finite Element Analysis is adopted to strengthen the crusher
    5.The crushing chamber adopts "V" shape structure, which makes the feeding port's actual width be in accordance with the nominal
    6.Discharging port adjustment is quicker and more convenient. Wedge block adjustment device is easier, safer and faster
    7.Larger and more wearable main bearing is used to lengthen the service life; The bearing capacity is higher and effective labyrinth seal also lengthens the lifespan
    8.The teeth protection plate increases the length of jaw plate

    • JCE Jaw Crusher0
    • JCE Jaw Crusher1
    • JCE Jaw Crusher2
    • JCE Jaw Crusher3
    • PY Series Cone Crusher0
    • PY Series Cone Crusher1
    • PY Series Cone Crusher2
    • PY Series Cone Crusher3

    • Specifications


      ModelCavity TapeStandard TypeShort Type

      Power

      (kw)

      Capacity

      (t/h)

      Feed Size

      (mm)

      Min Discharging

      Size(mm)

      		(mm)

      Min Discharging

      Size(mm)

      HPS200Extra Coarse132-20090-250
      Coarse185197610
      Medium12517546
      Fine9513236
      Extra Fine105
      HPS300Extra Coarse23025180-250115-440
      Coarse210207510
      Medium15015508
      Fine10510206
      Extra Fine206
      HPS400Extra Coarse29530280-355140-630
      Coarse250259010
      Medium19520508
      Fine11014406
      Extra Fine306
      HPS500Extra Coarse33030355-450175-790
      Coarse285259013
      Medium200205510
      Fine13316408
      Extra Fine356
      HPS800Extra Coarse35332550-630260-1200
      Coarse2973215513
      Medium267259210
      Fine21916336
      Extra Fine
      Discharge Opening(mm)
      Typet/h10mm13mm16mm19mm22mm25mm32mm38mm45mm51mm
      HPS200t/h90-120120-150140-180150-190160-200170-220190-235210-250
      HPS300t/h115-140130-185180-220200-240220-260230-280250-320300-380350-440
      HPS400t/h140-175185-230225-280255-320275-345295-370325-430360-490410-560465-630
      HPS500t/h175-220230-290280-350320-400345-430365-455405-535445-605510-700580-790
      HPS800t/h260-335325-425385-500435-545470-600495-730545-800600-950690-1050785-1200
    Quality HPS Series Cone Crusher portable crushing plant crushing technology vibrating feeder jaw crusher for sale

    HPS Series Cone Crusher portable crushing plant crushing technology vibrating feeder jaw crusher
