VSI Sand Making Machine Screening &Washing Plant Sand Making Plant vibrating feeder primary crushing vibrating feeder

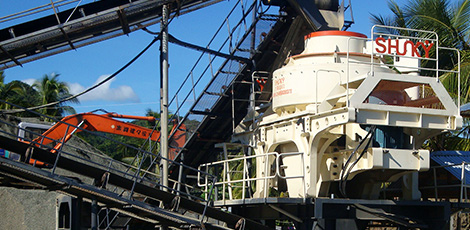

VSI Sand Making Machine

VSI series sand making machine is the latest successful sand making machine with the international advanced technology.Many years techonolgy accumulation and morden processing equipment ensure the leading position of the VSI sand making machine in this industry.Excellent cost performance and reliability make VSI and making machine outstanding in the similar products.VSI sand making machine is the perfect combination of the latest research result of Germany and Chinese present working conditions. It is currently the fifth generation of exclusive production sand making machine with the worlds advanced level.

(100-150TPH) Hard Rock Mobile Crushing Mobile Jaw Crusher Portable Crushing Plant

This mobile crushing station consists of vibrating feeder and jaw crusher. It plays a role of primary crushing stage, which can crush the hard stone with size around 700mm into small aggregates size range from 80mm-140mm. Its capacity is around 110-320t/h.

(500TPH-600TPH) Medium Hard Rock

The stone production line (500tph-600tph) mainly consists of vibrating feeder, jaw crusher, 2 sets impact crushers, 2sets vibrating screens, etc. In order to meet the large-output requirement, this configuration is energy-saving and high-efficiency. It can crush medium hard rock into stone at the rate of 500TPH to 600TPH.

Specifications

No.	Equipment	Model	Quantity	Power(Kw)
1	Vibrating Feeder	GZD1100X4200	1	15-18.5
2	Jaw Crusher	PE750X1060	1	90-110
3	Chassis	Tri-axial	1

(100-150TPH) Hard Rock Mobile Crushing Screening &Washing Plant Sand Making Plant

please feel free contact us by whatsapp: 008615021099979
(wechat/Viber/line/IMO/facebook)

Specifications

Model			VSI-7611	VSI-8518	VSI-9526	VSI-1140	VSI-1145
Capacity (th)		Center and Ring Feeding	120-180	200-260	300-380	450-520	500-640
Capacity (th)		Center Feeding	60-90	100-130	150-190	225-260	250-360
Max.Feeding Size (mm)		Soft Material	<30	<35	<40	<40	<40
Max.Feeding Size (mm)		Hard Material	<25	<30	<35	<35	<35
Rotation Speed (r/min)			1700-1890	1520-1690	1360-1510	1180-1310	1100-1310
Power for Double Motor (KW)			110-150	180-220	264-320	400-440	400-440
Overall Dimension (mm)			3850×2136×2360	4564×2400×2661	5020×2535×3050	5034×2760×3170	5100×2790×3320
Power Source			380V；50Hz
Lubrication Hydraulic Pressure Station	Power for Double Oil Pump (KW)		2×0.31
	Safety		The double oil pumps ensure the supply of the oil; Stop working without oil or hydraulic pressure;Temperature falls when the water cools;Start the motor by heating it in winter.
	Overall Dimension (mm)		820×520×1270
	Power for Oil Box Heater (kw)		2
